Bug #52

closed

Atari Control Picture

Added by Stephen over 6 years ago. Updated over 5 years ago.

Status:
Closed
Priority:
Normal
Assignee:
-
Start date:
06/29/2017
Due date:
% Done:

0%

Estimated time:

Description

CORE14, PAL & NTSC exhibit the same behaviour. When displaying the attached Atari Control Picture, the colour blocks in column 0 are only displaying the rightmost 4 pixels, not the entire 8.

Altirra (and real hardware) : ACP.png
Eclaire : ACP.jgp
Atari file for testing : acp.xex


Files

acp.xex (15.7 KB) acp.xex Run this on Atari Stephen, 06/29/2017 11:28 PM

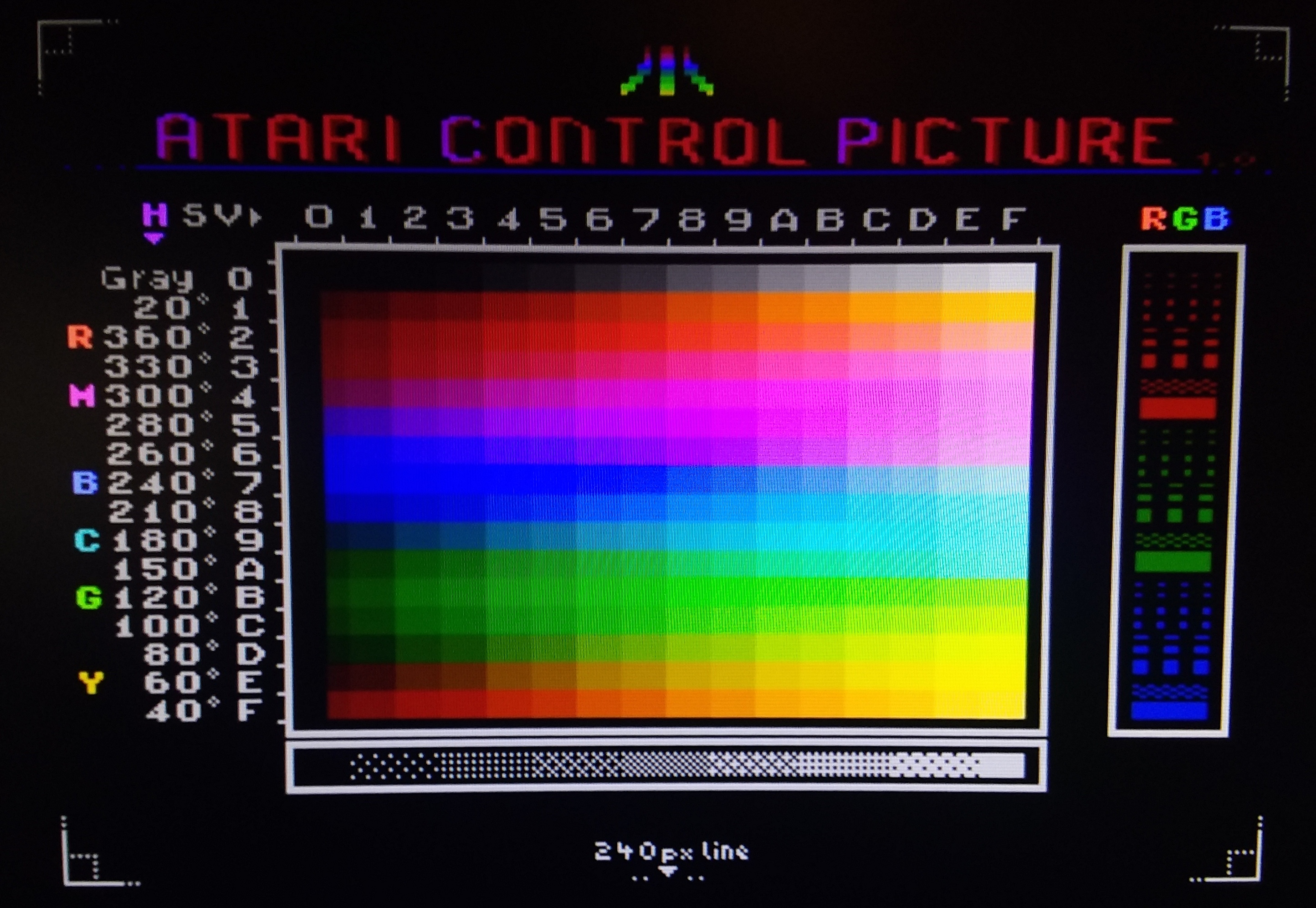

ACP.jpg (1.54 MB) ACP.jpg Eclaire screenshot - column 0 clipped Stephen, 06/29/2017 11:28 PM

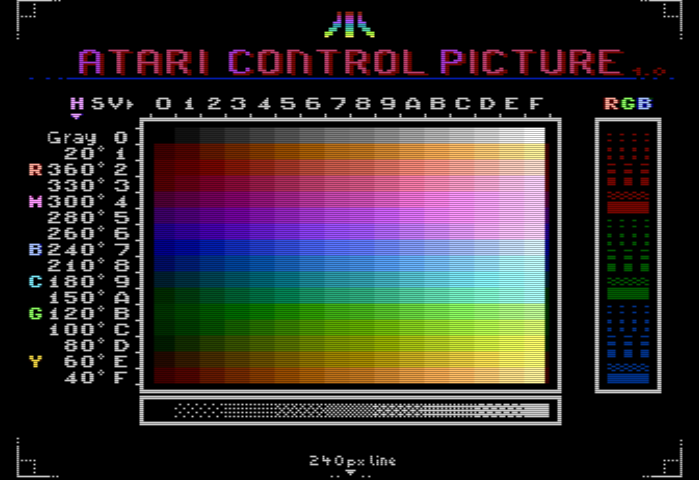

apc.png (60.7 KB) apc.png Expected behaviour - real hardware Stephen, 06/29/2017 11:29 PM
Actions #1

Updated by foft over 6 years ago

I checked an older core in case I introduced it with the antic timing changes for pbi. Was bad then, so unrelated.

This is a nice static picture to debug in sim or signaltap. I like this kind of test case:-)

Actions #2

Updated by Stephen over 6 years ago

foft wrote:

I checked an older core in case I introduced it with the antic timing changes for pbi. Was bad then, so unrelated.

This is a nice static picture to debug in sim or signaltap. I like this kind of test case:-)

Excellent - glad it will be of help. I only recently discovered this cool program.

Actions #3

Updated by foft over 5 years ago

  • Status changed from New to In Progress

Managed to capture in the logic analyzer with lots of info... Now just need to understand it then I can fix!

Actions #4

Updated by foft over 5 years ago

I fixed this by adjusting the delay on turning off the highres flag when switching into gtia mode. However it broke the Pseudo mode E acid test. So need to investigate some more! It looks like I'd put a 2 cycle delay in here specifically to pass that test. Removing it fixes the picture but breaks the test.

I'm aware that the timing isn't perfect on the dynamic gtia mode switching. I remember when I looked into this it was ... odd. With some very strange mode-dependent results on the edges.

Actions #5

Updated by foft over 5 years ago

For reference, the relevant passage from the Altirra hardware reference manual:
GTIA mode changes
A change to bits 6-7 of PRIOR takes place between 3-5 color clocks after the write, primarily after 4 color clocks
with a possible cycle of artifact on each side. For a write on cycle 65, the change takes place at positions $83-
$85. The nature of the artifact on-screen depends on the exact transition:
·
Mode 8 to mode 9/11:
Clean transition after 4 color clocks.
·
Mode 8 to mode 10:
Clean transition after 3 color clocks.
·
Mode 9/11 to mode 8:
1-2 color clock transition after 3 color clocks. At $83, the mode 9/11 pixel is cut in
half and the playfield is absent, showing background color if there are no players or missiles.
Pseudo
mode E display begins at $84, but the data from $83 is displayed instead. (Presumably this is an artifact
of timing sensitivity in disabling the mode 10 delay line.)
·
Mode 10 to mode 8:
One color clock transition after 4 color clocks.
Machine-specific Behavior Warning
On some systems, the artifact at $84 does not occur when switching from mode 9/11 to mode 8

Also a great blog post from Avery: http://www.virtualdub.org/blog/pivot/entry.php?id=243

Actions #6

Updated by foft over 5 years ago

So this is mode 8 to mode 9. 'clean transition after 4 colour clocks'.

The Eclaire takes 5 colour clocks here and the real hardware seems to take 2-3 colour clocks I think. Though possibly I'm confused:-)

Actions #7

Updated by foft over 5 years ago

  • Status changed from In Progress to Closed

Fixed by giving gtia modes priority over the high-res mode. This fixes the acp while acid still passes.

Still aware that gtia mode switching timing is a colour clock or so off, but in practical terms this is unlikely to be a problem.
