Bug #19

closed

PAL VGA Synch issues (screen is not centered

Added by ndary almost 7 years ago. Updated almost 7 years ago.

Status:
Closed
Priority:
Normal
Assignee:
foft
Start date:
05/30/2017
Due date:
% Done:

0%

Estimated time:

Description

I am using a LCD TV SCREEN with VGA input, when the ExclairXL boot into Basic (ready prompt) the screen is not centered
but in the Settings mode (Pressing F12) and 'file browse' (Pressing F11) screen the screen is centered, without changing any settings

my Screen detect this resolution... 720x576@50h, i can auto adjust the image using the Screen OSD but it looses the position every time i reboot the computer.

attaching pictures to show example

i will try testing on other screens as well.

Nir

Files

Download all files

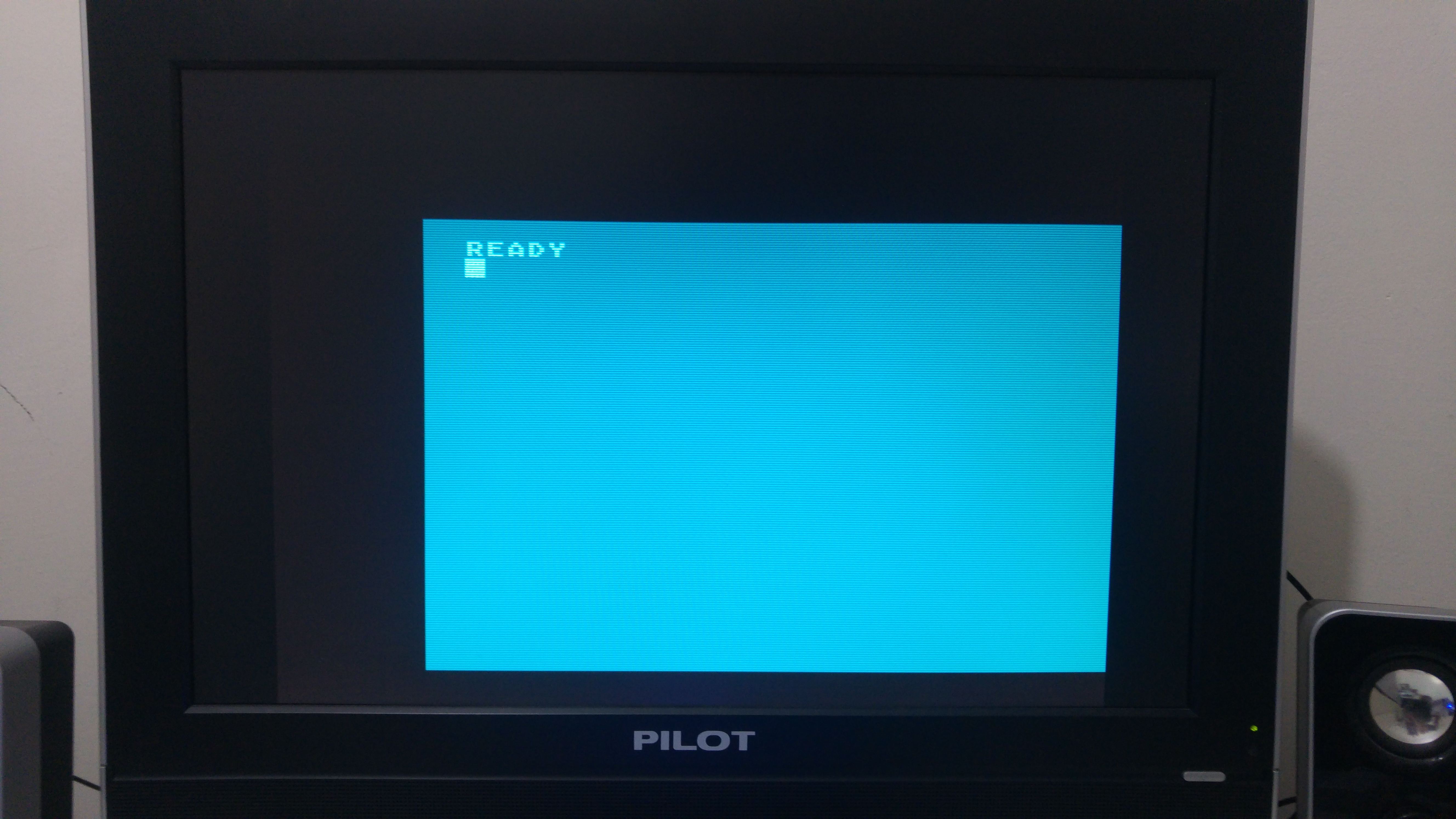

EclairXL-Ready Prompt.jpg (1.05 MB) EclairXL-Ready Prompt.jpg ndary, 05/30/2017 02:52 PM

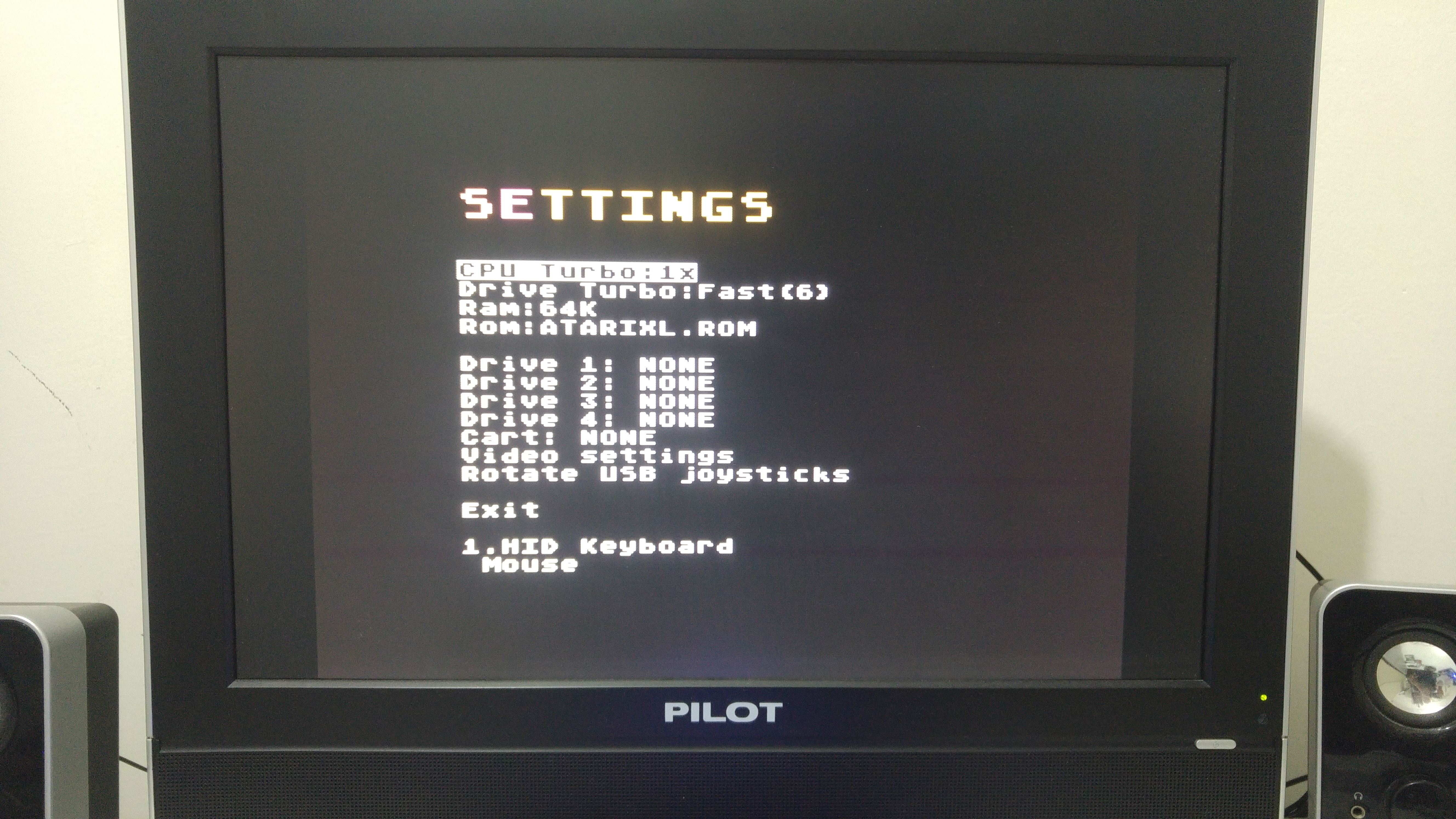

EclairXL-Settigns Screen.jpg (1.92 MB) EclairXL-Settigns Screen.jpg ndary, 05/30/2017 02:52 PM

Related issues 1 (1 open — 0 closed)

Related to Feature #7: Implement I2C vga/hdmi supportNew04/04/2017

Actions
Actions
Copy link
 #1

Updated by foft almost 7 years ago

50Hz isn't standard on VGA monitors at all. So its not going to work well unless you find one that supports modes like 576p50.

We will be doing work to fix this, there is a programmable pll on board and edid/ddc hardware to implement support for.

Actions
Copy link
 #2

Updated by foft almost 7 years ago

  • Status changed from New to Closed

Closing since we already have a task to implement the pll and edid/ddc support

Actions
Copy link
 #3

Updated by foft almost 7 years ago

  • Related to Feature #7: Implement I2C vga/hdmi support added
